Feature
Fresh air inlet
Fresh air inlet design, fresh air can be introduced to ensure fresh air in the room

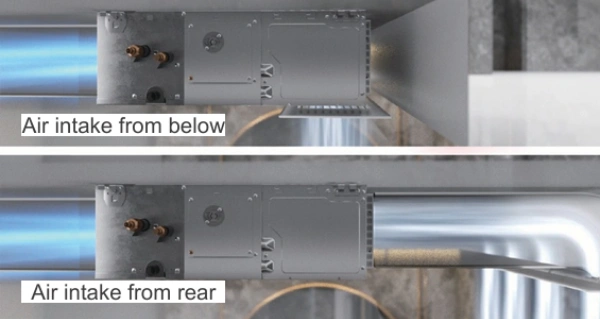

Flexible Air Intake Options
Two types of air intake, from rear and bottom (optional),
which can meet different decoration requirements

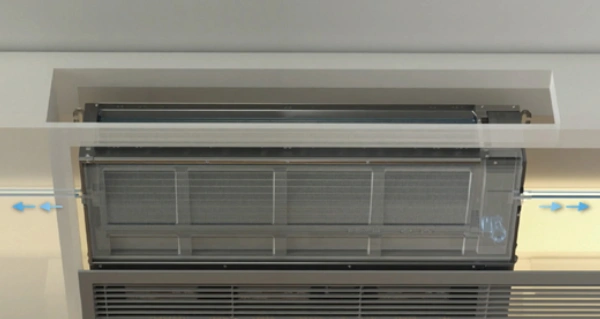

Two Way Drainage Directions
Two ways of drainage direction, from left and right, which
can meet different installation situations

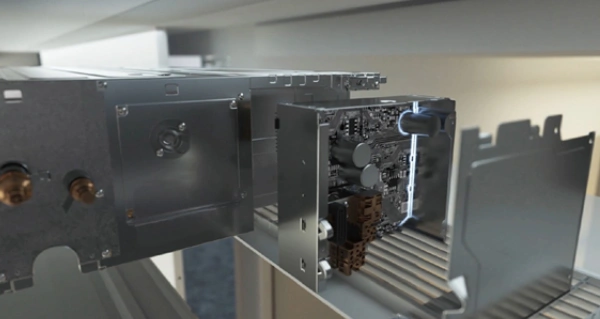

Removable Control Box
Independent structure design, so it’s convenient for us to
maintain by screwing off two screws to remove it

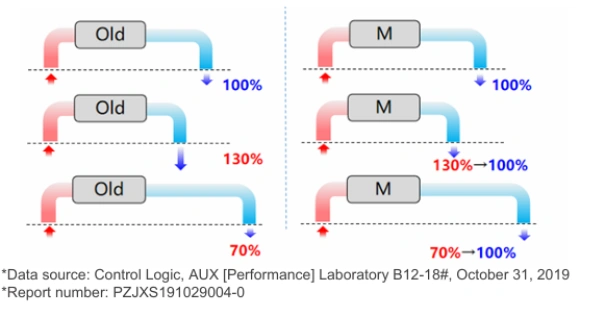

Constant Air Flow Volume (only certain model support ）
Under different ESP, the product supply Constant air flow
volume for comfort
Central control function
Optional dry node function, when the unit senses the win
dow opening or sensing the fire, the unit will automatically
shut down

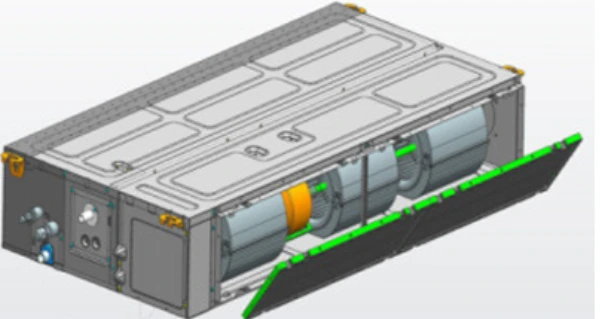

W Type High effeciency filter screen
Easy disassembly (0 Screws)
Convenient to wash
High effeciency (W type )
R32 Standard Efficiency DC Inverter Series
Mid ESP Duct Specification
| Sale Model | Unit | ALLD-H12/4DR3A-R AL-H12/4DR3A-R |
ALMD-H18/4DR3A-R AL-H18/4DR3A-R |
ALMD-H24/4DR3A-R AL-H24/4DR3A-R |
|
|---|---|---|---|---|---|
| IDU Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | |
| Capacity | Cooling | Btu/h | 12000 (3500~12750) | 18000 (5200~19100) | 24000 (7400~25590) |
| kW | 3.52 (0.60~3.90) | 5.30 (1.53~5.61) | 7.03 (2.16~7.50) | ||
| Heating | Btu/h | 13650 (2400~14330) | 19100 (4800~20300) | 25590 (6755~25930) | |
| kW | 4.00 (0.60~4.20) | 5.60 (1.40~5.94) | 7.60 (1.98~7.90) | ||
| Rated Cooling Power Input | kW | 1.07 (0.30~1.50) | 1.60 (0.47~1.90) | 2.15 (0.67~2.40) | |
| Rated Heating Power Input | kW | 1.08 (0.25~1.45) | 1.40 (0.46~1.90) | 1.90 (0.65~2.65) | |
| Electric Data | Rated Cooling Current | A | 6.20 (1.30~7.50) | 7.50 (2.25~8.40) | 10.30 (3.21~11.00) |
| Rated Heating Current | A | 6.20 (1.10~7.00) | 6.50 (2.20~8.40) | 9.00 (3.11~10.00) | |
| Performance | EER | — | 3.30 | 3.31 | 3.27 |
| COP | — | 3.70 | 4.00 | 4.00 | |
| Indoor Air Flow | m³/h | 600/500/420/300 | 900/800/670/550 | 1300/1150/1050/950 | |
| Indoor Unit | Noise Level | dB(A) | 31/29/26/24 | 40/38/35/33 | 40/38/35/33 |
| External Static Pressure | Pa | 0~80 | 0~160 | 0~160 | |
| Static Pressure | Pa | 13 | 25 | 25 | |
| Net Dimension (W×H×D) | mm | 700×450×198 | 700×700×245 | 1000×700×245 | |
| Packing Dimension (W×H×D) | mm | 865×535×255 | 930×830×300 | 1230×830×300 | |
| Net Weight (kg) | — | 12.5 | 21.5 | 26 | |
| Gross Weight (kg) | — | 15.0 | 25.5 | 31 | |
| Refrigerant Pipe | Liquid Side | mm | 6.35 (1/4) | 6.35 (1/4) | 9.52 (3/8) |
| Gas Side | mm | 9.52 (3/8) | 12.7 (1/2) | 15.88 (5/8) | |
| Drainage | — | R3/4 in (DN20) | R3/4 in (DN20) | R3/4 in (DN20) | |
| Operation Temperature Range | ℃ | 16~32 | 16~32 | 16~32 | |
| Wired Controller | — | XK05-DY | XK05-DY | XK05-DY | |
| Sale Model | Unit | ALMD-H36/4DR3A-R AL-H36/4DR3A-R |
ALMD-H48/5DR3A-R AL-H48/5DR3A-R |
ALMD-H60/5DR3A-R AL-H60/5DR3A-R |
|
|---|---|---|---|---|---|
| IDU Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | |
| Capacity | Cooling | Btu/h | 36000 (12280~37530) | 48000 (14330~49540) | 55000 (16400~57320) |
| kW | 10.55 (3.60~11.00) | 14.07 (4.20~14.52) | 16.12 (4.80~16.80) | ||
| Heating | Btu/h | 39880 (9210~40940) | 52000 (15700~58000) | 60050 (16700~62780) | |
| kW | 11.70 (2.70~12.00) | 15.24 (4.60~17.00) | 17.60 (4.90~18.40) | ||
| Rated Cooling Power Input | kW | 3.40 (0.42~3.80) | 4.67 (1.21~6.30) | 5.36 (1.38~6.80) | |
| Rated Heating Power Input | kW | 3.08 (0.80~3.35) | 4.22 (0.92~5.80) | 5.16 (0.98~6.00) | |
| Electric Data | Rated Cooling Current | A | 15.20 (1.82~17.80) | 10.00 (2.50~11.00) | 10.50 (2.85~11.50) |
| Rated Heating Current | A | 13.40 (3.40~14.60) | 8.00 (1.90~8.50) | 9.50 (2.02~10.00) | |
| Performance | EER | — | 3.10 | 3.01 | 3.01 |
| COP | — | 3.80 | 3.61 | 3.41 | |
| Indoor Air Flow | m³/h | 1700/1500/1300/1100 | 2300/2000/1700/1500 | 2300/2000/1700/1500 | |
| Indoor Unit | Noise Level | dB(A) | 44/42/39/37 | 48/46/44/41 | 48/46/44/41 |
| External Static Pressure | Pa | 0~160 | 0~160 | 0~160 | |
| Static Pressure | Pa | 37 | 50 | 50 | |
| Net Dimension (W×H×D) | mm | 1000×700×245 | 1400×700×245 | 1400×700×245 | |
| Packing Dimension (W×H×D) | mm | 1230×830×300 | 1630×830×300 | 1630×830×300 | |
| Net Weight (kg) | — | 28 | 42 | 36 | |
| Gross Weight (kg) | — | 33 | 42 | 42 | |
| Refrigerant Pipe | Liquid Side | mm | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) |
| Gas Side | mm | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | |
| Drainage | — | R3/4 in (DN20) | R3/4 in (DN20) | R3/4 in (DN20) | |
| Operation Temperature Range | ℃ | 16~32 | 16~32 | 16~32 | |
| Wired Controller | — | XK05-DY | XK05-DY | XK05-DY | |
